Nylon Based Ice9 Filament - Thermally Conductive and ESD Safe

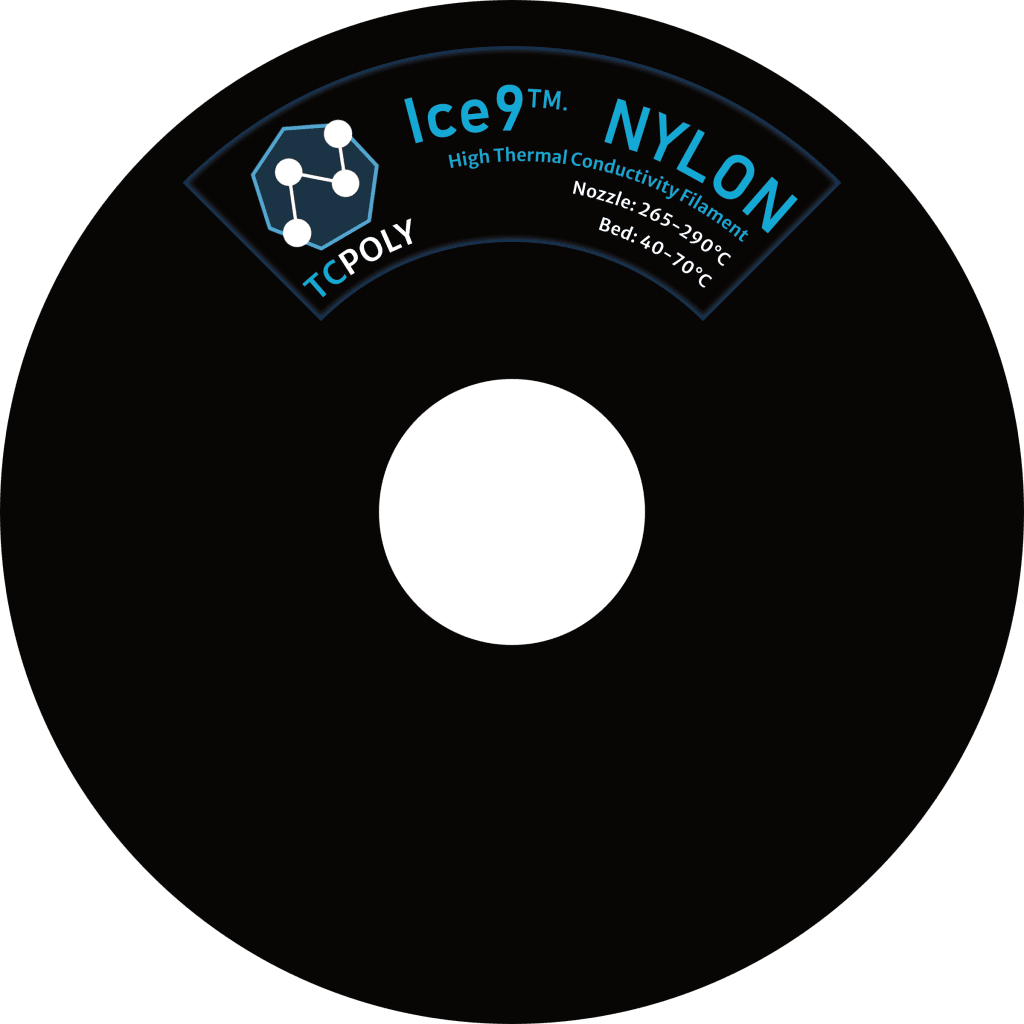

Ice9™ NYLON is a specialty graphite based polyamide that is thermally conductive with temperature stability above 150°C. The filament has a thermal conductivity of 4 W/m-K in the print direction and dissipates static electricity making it ESD safe. Ice9™ NYLON works well with most standard FDM printers (with nozzles that can achieve at least 270°C print temperature). Now in a 0.5 kg size (larger sizes available upon request), but we still utilize full size spools so that they fit most filament holder setups. Ideal for smaller projects or testing designs before moving into production.
$79.99 per 0.5 kg filament spools.
Properties
Thermal
Thermal conductivity, in-plane
Thermal conductivity, through-plane
Specific heat
Coefficient of thermal expansion
Heat deflection temperature, 0.45 MPa
Max. continuous temperature
Metric
English
4 W/m-K
1 W/m-K
1200 J/kg-K
40 ppm/°C
160 °C
200 °C
28 BTU·in/hr·ft²·°F
7 BTU·in/hr·ft²·°F
0.29 BTU/lb·°F
22 ppm/°F
320 °F
392 °F

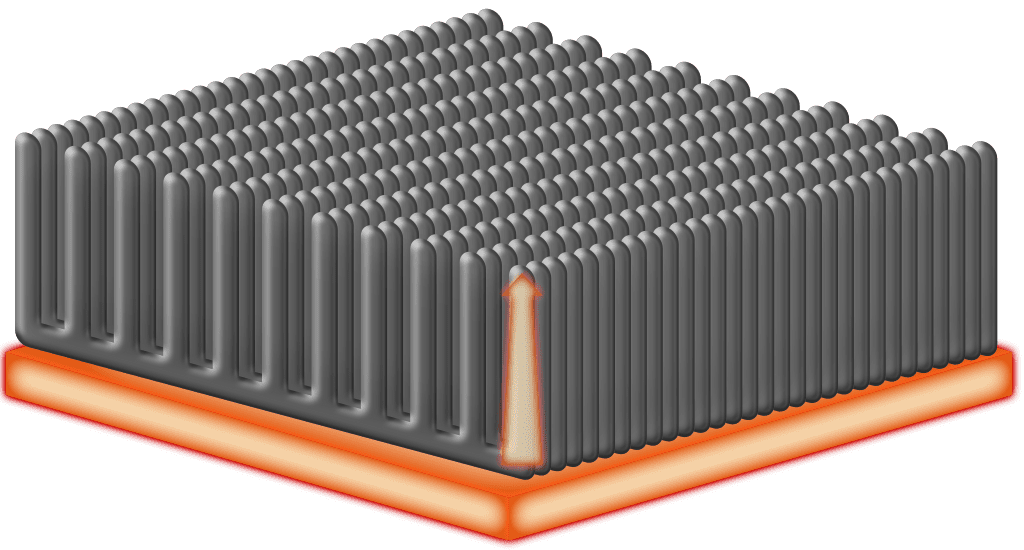

In-Plane Thermal Conductivity

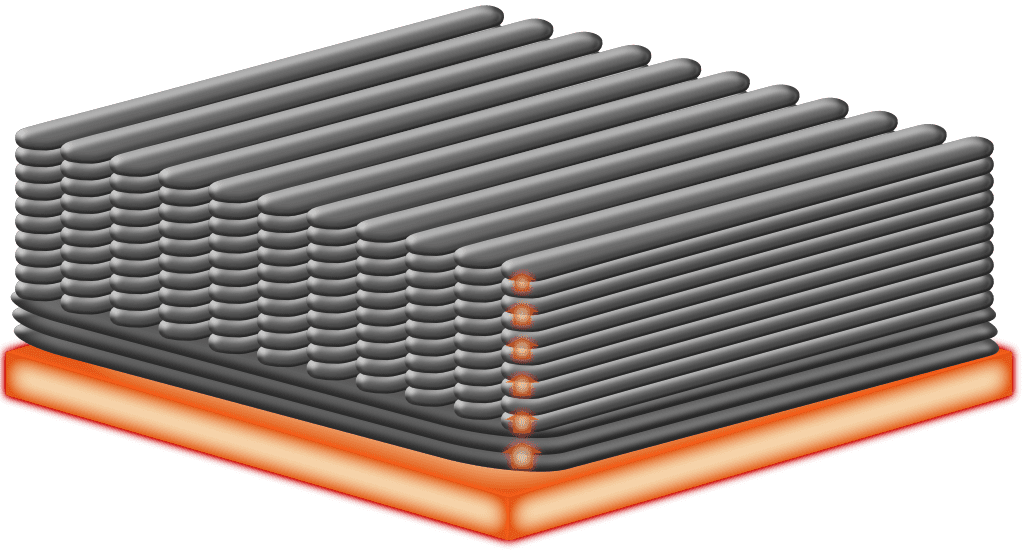

Through-Plane Thermal Conductivity
Mechanical
Shore Hardness
Flexural modulus
Tensile strength, Break
Elongation at break
Impact strength, Izod notched
Metric
English
70 D
4 MPa
45 MPa
1 %
80 J/m
–
13.8 ksi
6.5 ksi
1 %
1.5 lb-ft/in
Settings
Temperature
Extruder temperature
Bed temperature
Chamber temperature
Cooling fan
Value
265-310 °C
70-100 °C
60-70 °C
60 %, Bridging Only
Slicer
Print speed
Layer
Retraction distance
Extra restart distance
Infill for best thermal performance
Value
60-150 mm/s
0.2-0.7 mm
4 mm
0.5 mm
95-100 %
Guidelines
Nozzle diameter
Extruder type (1.75 mm)
Print bed preparation
Drying instructions
Storage instructions
Part removal from bed
Suggestions
0.4-1.0 mm
Direct or Bowden
Glue stick on PEI or Glass
4 hr @ 100°C
Sealed bag
Heat bed to 100°C then gently remove with spatula.
Recommended 3D Printer
Qidi X-Plus 4
Qidi X-Max 3
Qidi X-Max 4
305x305x280mm enclosed build volume, heat chamber, around $700
325x325x315mm enclosed build volume, heat chamber, around $800
390x390x340mm enclosed build volume, heat chamber, around $1050
