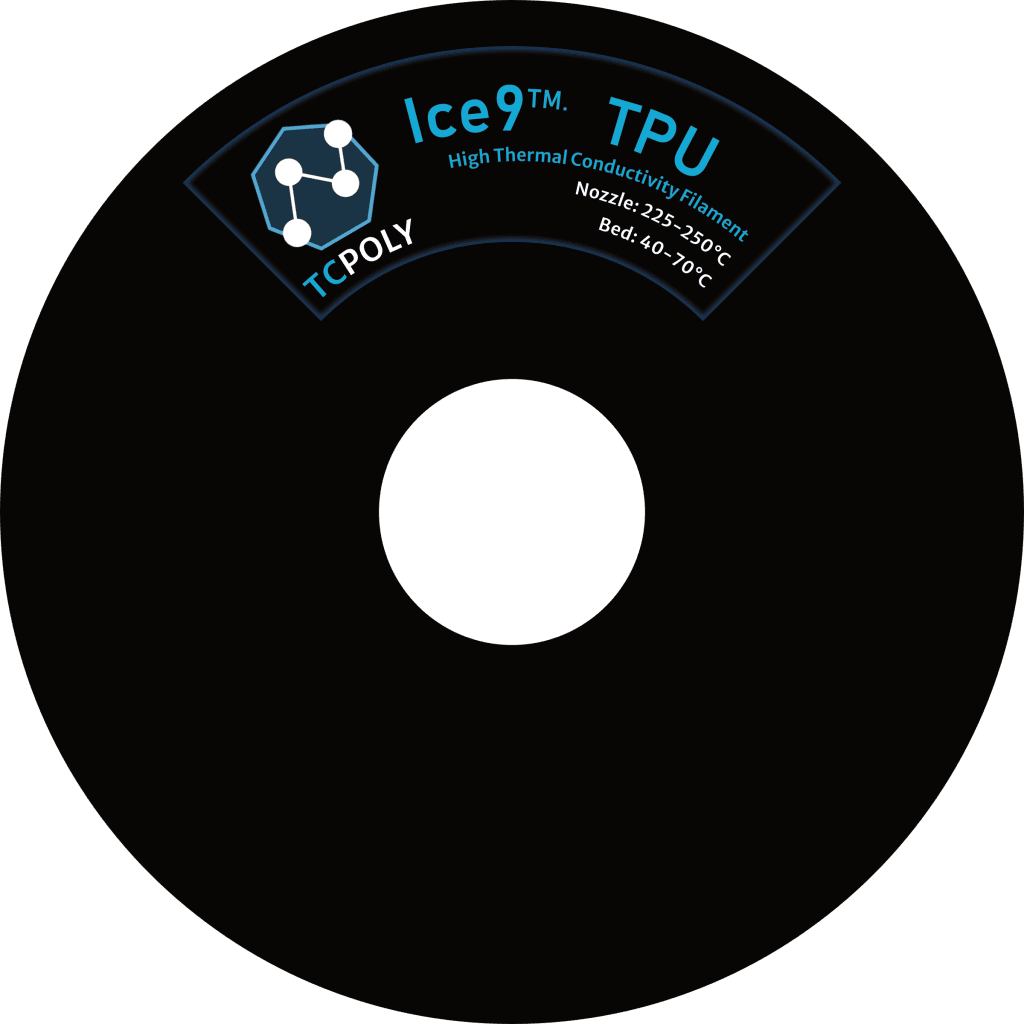

TPU Based Ice9 Filament - Thermally Conductive and ESD Safe

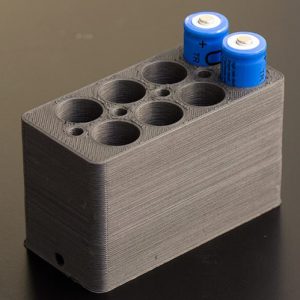

Ice9 TPU is an advanced graphite based thermally conductive composite. It is semi-flexible and has a thermal conductivity of 6 W/m-K in the print direction. It works best with direct drive systems and any FDM printers that print flexible filaments. The filament exhibits electrostatic dissipative properties making it ESD safe. The fillers improve temperature stability and provide the composite material with a usable temperature up to 110°C. The material is ideal for heat sinks, heat exchangers, battery packs, liquid cooling, and the most demanding thermal applications.
Properties
Thermal
Thermal conductivity, in-plane
Thermal conductivity, through-plane
Specific heat
Coefficient of thermal expansion
Heat deflection temperature, 0.45 MPa
Max. continuous temperature
Metric
English
6 W/m-K
2 W/m-K
1300 J/kg-K
80 ppm/°C
65 °C
110 °C
54 BTU·in/hr·ft²·°F
14 BTU·in/hr·ft²·°F
0.31 BTU/lb·°F
44 ppm/°F
149 °F
230 °F
In-Plane Thermal Conductivity
Through-Plane Thermal Conductivity
Mechanical
Shore Hardness
Flexural modulus
Tensile strength, Break
Elongation at break
Impact strength, Izod notched
Metric
English
88 A
95 MPa
27 MPa
10 %
No Break
–
15 ksi
4 ksi
10 %
No Break
Settings
Temperature
Extruder temperature
Bed temperature
Cooling fan
Value
230-270 °C
0-50 °C
60 %, Bridging Only
Slicer
Print speed
Layer
Retraction distance
Extra restart distance
Infill for best thermal performance
Value
20-125 mm/s
0.2-0.7 mm/s
6 mm
0.5 mm/s
95-100 %
Guidelines
Nozzle diameter
Extruder type (1.75 mm)
Print bed preparation
Drying instructions
Storage instructions
Part removal from bed
PEI flex sheet
Suggestions
0.4-1.0 mm
Direct drive, dual gear highly suggested
Painter’s Tape, with Glue Stick if not using heated bed
4 hr @ 90°C
Sealed bag
Heat bed to 70°C then gently remove with spatula.
50°C during print, flex sheet to pop off
Recommended 3D Printer
Qidi X-Plus 4
Qidi X-Max 3
Bambu P1S
Bambu P2S
305x305x280mm build volume, dual gear direct drive, around $700
325x325x315mm build volume, dual gear direct drive, around $800
256x256x256mm build volume, dual gear direct drive, $399
256x256x256mm build volume, dual gear direct drive, $550
